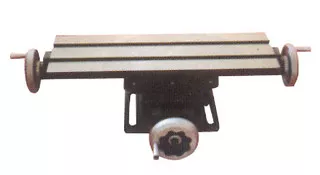

Precise Compound Mill & Drill Table, 6″ x 18-1/2″
- Height: 5″
- 0.100″ per revolution
- Travel: 11″ longitudinal x 7-1/2″ cross
- Base: 8 x 10-1/2″ with t-slots for bolts up to 5/8″
- Table Dimensions: 6 x 18-1/2″
- Table surface hardness: 20 HRC
- Expect to experience backlash/play in the handle
- Fully adjustable gibs to compensate for wear
- Micrometer dials with friction hold allow dial to be “0” at any point
Specifications:
| T-SLOT | 5/8″ |
| LONGITUDINAL TRAVEL (Y) | 11″ |
| CROSS TRAVEL (X) | 7.5″ |
| TABLE LENGTH | 18-1/2″ |
| TABLE WIDTH | 6″ |
| TABLE HEIGHT | 5″ |
| BASE LENGTH | 10-1/2″ |
| BASE WIDTH | 8″ |
| GRADUATION | 0.001″ |
